Rugged Portability

• Lightweight design: weighs just 9.7 lb (4.4 kg) and is sealed to IP54 against dust and rain.
• Military durability testing: tested to MIL-STD-810F shock, vibration, and temperature extremes (–26 °C to 55 °C) and survives 1 m drops.
• Flight certification: certified for all phases of fixed- and rotary-wing flight and operates from –2 000 ft to 25 000 ft.

Versatile Ventilation for Infants to Adults

• Ventilation modes: AC, SIMV, CPAP, and Bi-Level* with volume or pressure targeting.
• Wide clinical range: 50–2000 mL tidal volume, 1–80 BPM breath rate, 0–30 cm H₂O PEEP, and FiO₂ 21–100 %.
• Safety features: built-in Apnea Backup and Automatic Leak Compensation safeguard non-invasive therapy.

Smart Help™ & Intuitive Workflow

• Interactive alarm screen: shows exact corrective steps, reducing troubleshooting time.
• Enhanced display: large back-lit display and waveform view improve situational awareness in bright sun or blackout mode.

Extended Endurance & Efficient Gas Use

• Long battery life: 10-hour internal Li-ion battery recharges to 90 % in two hours; no spare battery needed for long transports.
• Efficient oxygen consumption: internal compressor consumes less than half the oxygen of many transport ventilators, conserving portable O₂.

Ready for Specialty Transport

• MRI-conditional option*: allows vented patients to remain on the same device during imaging.
• Flexible power sources: accepts 100–240 VAC, 12.5–28 V DC, or 55 psig O₂; works seamlessly with portable concentrators.

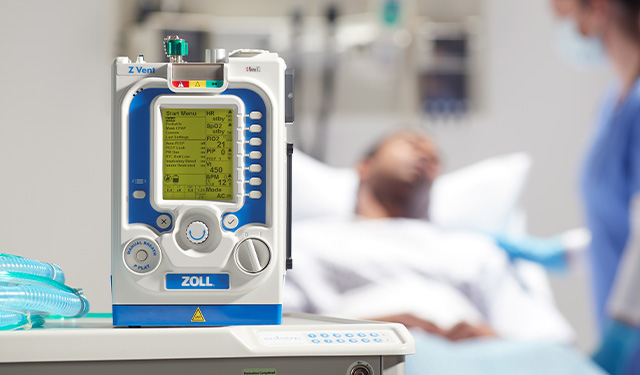

The Z Vent® simplifies critical-care transport by pairing ICU-class ventilation with true grab-and-go portability—keeping patients safely ventilated from first response to definitive care.
