Exceptional Portability & Durability

• Compact design: under 12 lb (5.3 kg with battery and paper) and only 8.9 in × 10.4 in × 7.9 in, making it one of the smallest full-featured monitor/defibrillators available.
• IP55-rated enclosure: 1 m functional drop-tested, and validated for vibration, shock, and operating temperatures from 0 °C to 50 °C.

Real-Time CPR Quality Improvement

• CPR Dashboard™: displays numeric depth, rate, release, and perfusion performance indicators.
• Real CPR Help®: provides live audio-visual coaching, while See-Thru CPR® filters compression artefact so rescuers can check rhythm without pausing.

Comprehensive Monitoring in One Box

• Multi-lead ECG capability: 3-, 4-, 5-, or 12-lead ECG with split-screen static/dynamic 12-lead review.
• Ten physiologic parameters: NIBP, EtCO₂, Masimo rainbow® SpO₂/SpCO/SpMet/SpHb/SpOC, three invasive pressures, two temperature channels, and impedance pneumography.
• Large 6.5 in colour LCD: shows up to four simultaneous waveforms with high-contrast readability in bright sunlight or low light.

Advanced Defibrillation & Pacing

• Rectilinear Biphasic™ waveform: energy range 1–200 J with < 7 s charge to 200 J.
• External transcutaneous pacing: (30–180 ppm, 0–140 mA, 40 ms pulse width) in Demand or Fixed mode.
• Automatic paediatric mode: engages with paediatric electrodes, adjusting energy, alarms, and NIBP limits for children and neonates.

Built-In Connectivity & Data Management

• Integrated WiFi: first monitor/defibrillator to feature integrated WiFi; Bluetooth® and USB cellular modem standard.
• Seamless case upload: to RescueNet® CaseReview or other ZOLL data platforms for debriefing, QA, and EMR integration.

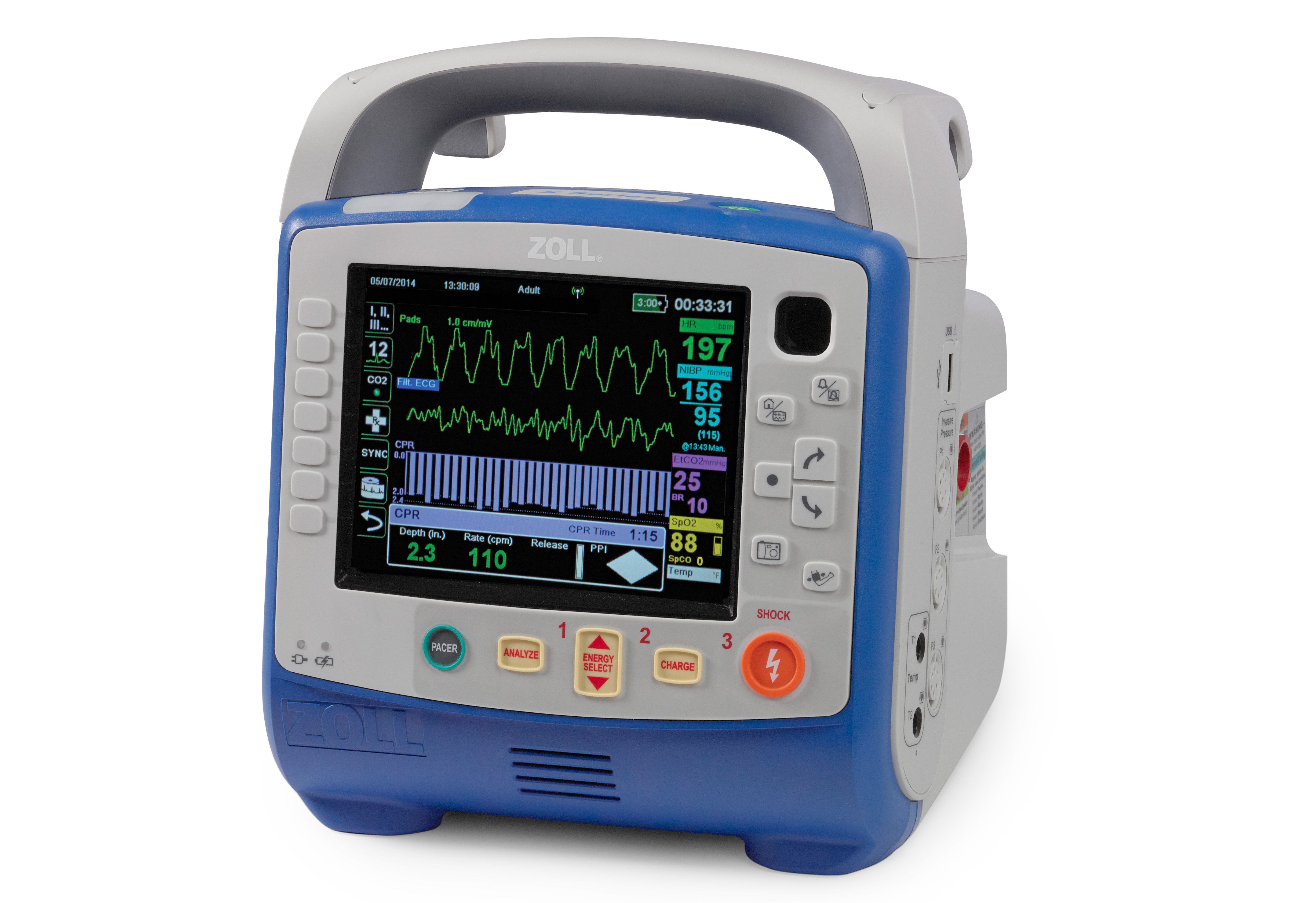

The ZOLL X Series® gives EMS and critical-care transport teams the confidence, clinical insight, and lightweight portability required to deliver advanced resuscitative care on the move—helping save lives while streamlining workflows and equipment loads.
