Key Features

• Low‑Noise Ag/AgCl Sensors: Silver/silver‑chloride coating provides stable half‑cell potential and < 5 kΩ impedance with minimal skin prep. Central 2 mm paste aperture simplifies gel placement and ensures full electrode contact.

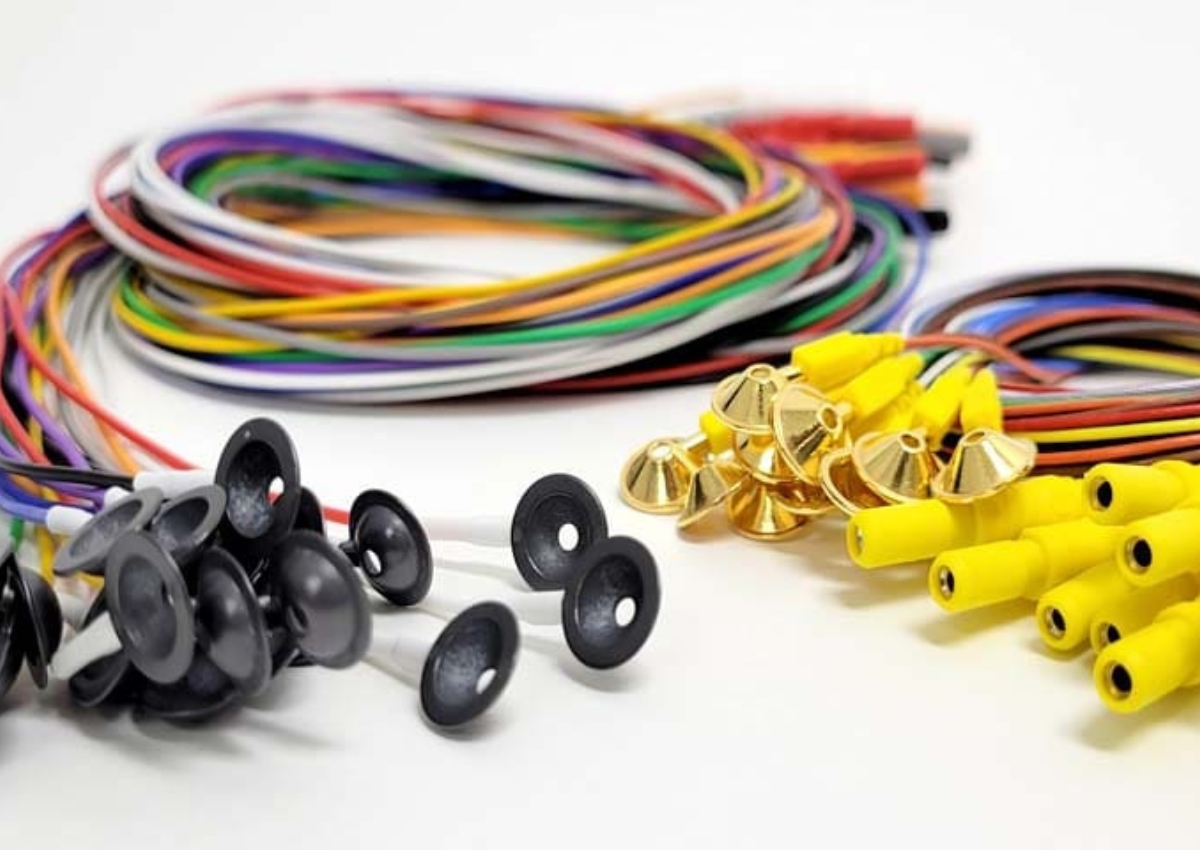

• Three Cup Geometries: 10 mm STANDARD – universal profile for most adult scalp placements. 10 mm DEEP – taller sidewall holds more paste for extended monitoring or hair‑dense sites. 6 mm DEEP – pediatric‑friendly footprint fits small craniums and contoured areas.
• Tangle‑Free, Colour‑Coded Leads: Multi‑coloured 27‑wire palette matches the 10‑20 system for error‑free set‑ups. Over‑moulded strain relief prevents wire fatigue at the cup junction. Choice of 39 in (99 cm) or 59 in (150 cm) lead lengths with standard 1.5 mm touch‑proof connectors.
• Convenient Pack Sizes: Available in packs of 10, 15, 25 or 27 to match routine studies, neonatal sets or full 10‑20 montages. Individually organised in a clear pouch—no untangling bundles chair‑side.
• Infection‑Control & Workflow Benefits: Single‑patient use cuts the risk of hospital‑acquired infections and eliminates cleaning turnaround. No harsh chemicals or abrasive scrubbing required—just apply, record, and dispose.

Technical Specifications

• Sensor material: Silver / silver‑chloride coated ABS cup
• Cup diameter: 10 mm (STANDARD & DEEP) · 6 mm (DEEP)
• Paste aperture: 2 mm
• Leadwire lengths: 39 in (99 cm) · 59 in (150 cm)
• Leadwire type: Pre‑attached, multi‑colour PVC‑jacket, 27‑gauge
• Connector: 1.5 mm DIN touch‑proof plug
• Packaging options: 10, 15, 25 or 27 electrodes per sterile pouch
• Sterility: Non‑sterile, single use
• Shelf life: 3 years from manufacture (foil‑pouch storage)

Why Choose Cadwell Disposable EEG Cups?

• : Consistent impedance—Ag/AgCl sensors and fresh surface every case.
• : Faster patient turnover—skip soaking, scrubbing and cable management.
• : Improved infection control—ideal for ICU, EMU and immunocompromised populations.
• : Versatile sizing & lengths—standard and deep cups, adult and pediatric fits, short or long leads for any headbox layout.
• : Cost‑effective packs—order just the quantity you need; reduce leftover waste and inventory tying up capital.

Cadwell Disposable EEG Cup Electrodes help you maintain high‑quality signals while protecting patients and maximising technologist efficiency—an essential upgrade for modern EEG, ICU and long‑term monitoring workflows.
