Portable & Intuitive

• Compact, lightweight housing: with integrated carry handle fits crowded clinics and mobile carts.
• 5.6″ colour TFT LCD touchscreen plus alphanumeric keyboard: allow one-touch operation and rapid data entry.

Accurate Diagnostic Capability

• Simultaneous 12-lead sampling with six-channel printout: ensures high-fidelity traces.
• Automated adult and paediatric measurement & interpretation: validated against industry databases.
• Pacemaker detection: meets ANSI/AAMI EC11 standards, safeguarding interpretive accuracy.

Advanced Clinical Tools

• R-R (heart-rate-variability) analysis mode: calculates HRV indicators for deeper cardiac insight.
• 120-second waveform review and real-time freeze: let clinicians verify signal quality before saving or printing.

Flexible Recording & Printing

• Built-in high-resolution thermal printer: produces crisp reports on demand; external printer support adds workflow flexibility.
• Internal memory: stores up to 500 ten-second ECGs; external 4 GB USB storage holds up to 20 000 files.

Connected Data Management

• Integrated Wi-Fi and USB: simplify transmission to the Sentinel™ Cardiology Information Management System or other HIS/EMR platforms.
• Optional FDA-XML or DICOM export, plus 1D/2D barcode-reader support: streamline order entry and archival.

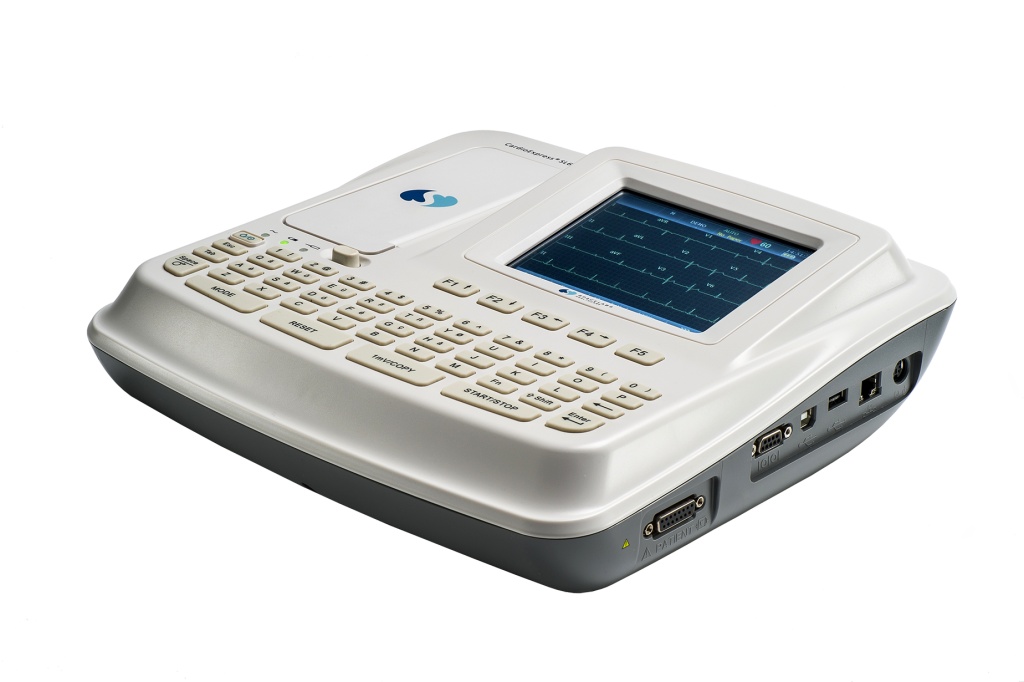

CardioExpress SL6A gives busy cardiology and acute-care teams the portability, accuracy, and connectivity they need to capture clear resting ECGs quickly—helping clinicians make confident decisions at the point of care.
