Comprehensive Vital-Signs Coverage

• Standard measurements:: 3-, 5-, or diagnostic 12-lead ECG, respiration, SpO₂ (Masimo SET®, TruLink®, or Nellcor OxiMax®), non-invasive blood pressure, and temperature
• Optional expansion: for up to 8 invasive blood-pressure channels plus cardiac output, ISA capnography, and USB spot-check thermometer
• Supports up to 8 waveforms and 24 parameters: on screen for neonatal, paediatric, and adult patients

At-a-Glance Visual Intelligence

• Ultra-bright display: with large numerics for easy bedside reading
• Multicolour, severity-based alarm lights: on both front and back improve situational awareness in busy units
• Customisable screen layouts and graphical assessment tools: put the right data in front of the right clinician, fast

Built for Mobility & Tough Environments

• Two hot-swappable batteries: provide up to eight hours of cordless operation; quick-release docking station recharges on the fly
• Chemically resistant, impact-resistant housing: with protection against liquid ingress
• Quick-release mount: fits walls, roll stands, bed rails, anaesthesia carts, or IV poles for rapid redeployment

Rich Trends & Decision Support

• Stores 96 hours of full-resolution trends: plus interactive graphical and tabular review at the bedside
• 24-hour Patient Data Shuttle: travels with the monitor, keeping historical data intact during transfers
• Onboard calculators: (drug, hemodynamic, ventilation) streamline point-of-care decision-making

Connected & Compatible

• Industry-standard wired and optional wireless networking: integrate seamlessly with Spacelabs Xhibit® central stations and hospital EMRs
• Works with Spacelabs Command Modules, Capnography Pod, and Exergen Temporal Artery Thermometer: for tailored parameter sets

Technical Specifications (Summary)

• Display:: 12 in colour touchscreen; up to 8 simultaneous waveforms
• Standard Parameters:: ECG, Respiration, NIBP, Temperature, SpO₂
• Optional Parameters:: Up to 8 × IBP, Cardiac Output, EtCO₂, USB spot-check thermometer
• Trend Memory:: 96 h full-resolution trends; 24 h waveform recall
• Battery Runtime:: Up to 8 h with 2 hot-swappable batteries
• Transport Weight:: Lightweight portable design with integrated carry handle (exact weight varies with configuration)
• Connectivity:: Ethernet, optional WLAN; HL7 outbound support; internal strip recorder option
• Mounting Options:: Wall, roll-stand, bed rail, anaesthesia cart, IV pole; one-touch quick release

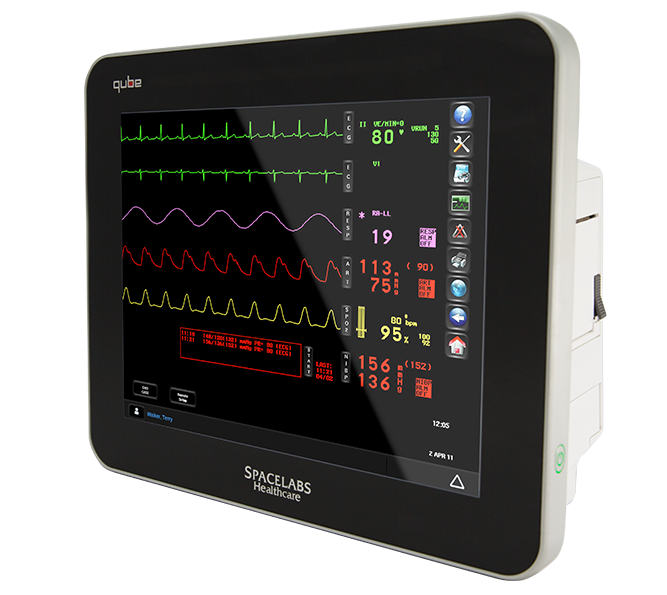

From first assessment through transport and recovery, the Qube® Compact Bedside Monitor delivers the portability, precision, and connectivity modern care teams need to keep every patient continuously—and confidently—under watch.
