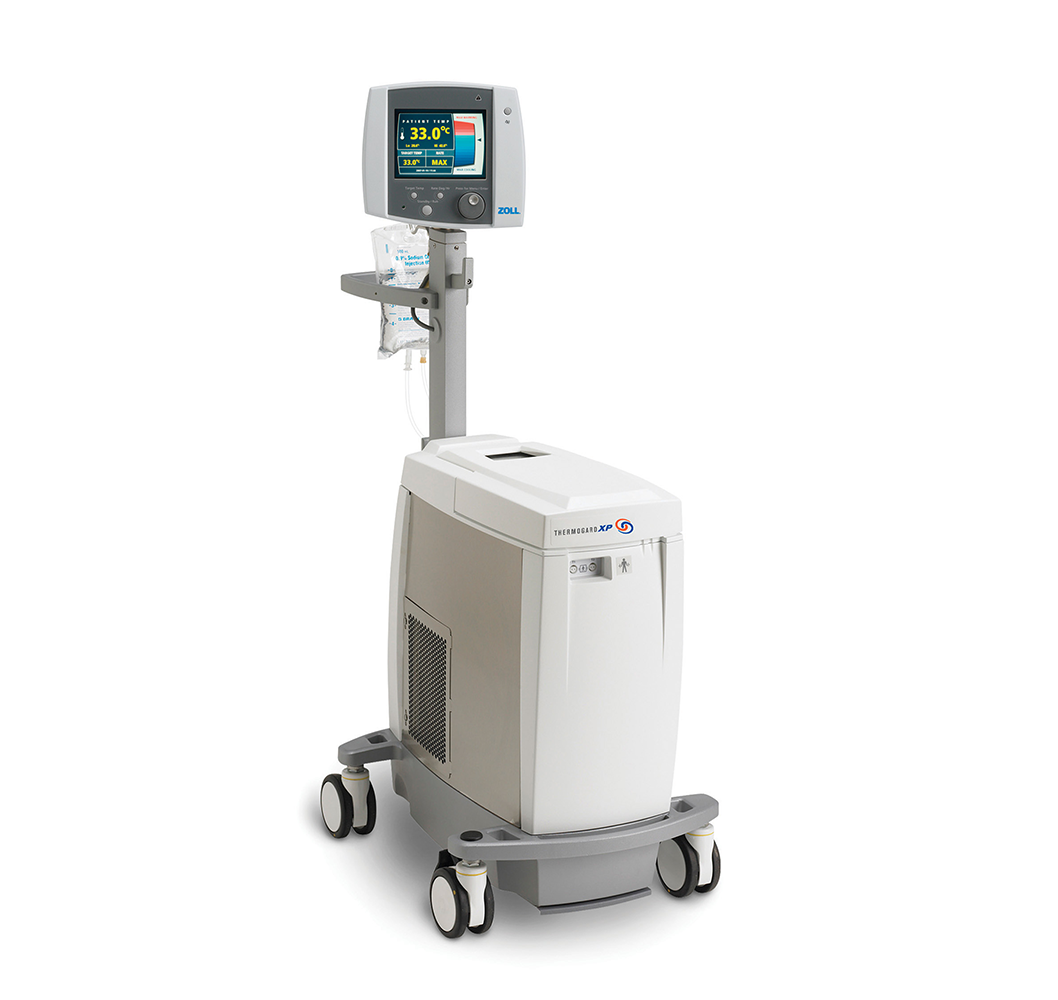

Thermogard XP® Temperature Management System

Thermogard XP
Thermogard XP
Thermogard XP

Rapid, Precise Core & Surface Cooling in a Single Platform

The Thermogard XP® (TGXP) delivers both intravascular core cooling and non-adhesive surface cooling from one intuitive console, letting critical-care teams reach and maintain target temperature with unmatched accuracy. Closed-loop saline circulation and automatic feedback keep patient temperature within ±0.2 °C while reducing nursing workload and shivering management.

Dual-Modality Flexibility
  • Combined cooling approaches: combines intravascular and surface temperature management on one system, giving clinicians immediate options for any protocol or patient severity.
Precise, Autonomous Control
  • Ultra-precise temperature control: detects a 0.1 °C deviation and instantly adjusts coolant temperature, holding core values within ±0.2 °C for 100 % target-time performance.
Rapid Cooling & Warming
  • High-efficiency heat exchange: high-efficiency heat exchanger and 7 L min⁻¹ pump circulate chilled or warmed saline through the catheter loop to change core temperature quickly without infusing fluid into the patient.
Multifunction Catheters & Pads
  • MR-conditional catheters: 9.3 F catheters double as triple-lumen CVCs for medication delivery, blood draws, and CVP monitoring.
  • STx™ gel-free surface pads: offer simple external therapy when intravascular access is not indicated.
Lower Nursing Burden
  • Automated regulation: automated temperature regulation and real-time software display cut nursing tasks by up to 74 %, freeing staff for other critical duties.
Comprehensive Data Management
  • Data storage and export: console stores, displays, and exports continuous temperature and system data, streamlining documentation and quality-improvement review.
Technical Specifications
Temperature range (coolant): 0 °C – 42 °C | Displayed range: 26 °C – 42 °C; accuracy ± 0.2 °C
Automatic control bandwidth: ± 0.2 °C from set point
Pump capacity: 7 L min⁻¹ (0 m head)
Reservoir volume: 2 L saline (closed loop)
Console dimensions: 114 × 43 × 76 cm | Weight: 52 kg (115 lb)
Power: 100–120 VAC 5 A / 220–240 VAC 2.25 A, 50/60 Hz
Operating environment: 10 °C – 27 °C; 30 %–75 % RH; 70–106 kPa
User interface: 6.4 in colour LCD with push-button & rotary knob; 180° swivel, 45° tilt
Alarm system: audible tones plus on-screen messages for temperature, saline level, and system status

Thermogard XP® gives critical-care teams the power, precision, and versatility to manage patient temperature confidently—helping improve outcomes while streamlining workflow in the most demanding clinical environments.
