CITO 532™ SLT Laser

CITO 532- SLT Laser
CITO 532- SLT Laser

Fast, Gentle Glaucoma Therapy With the World’s Highest Repetition Rate

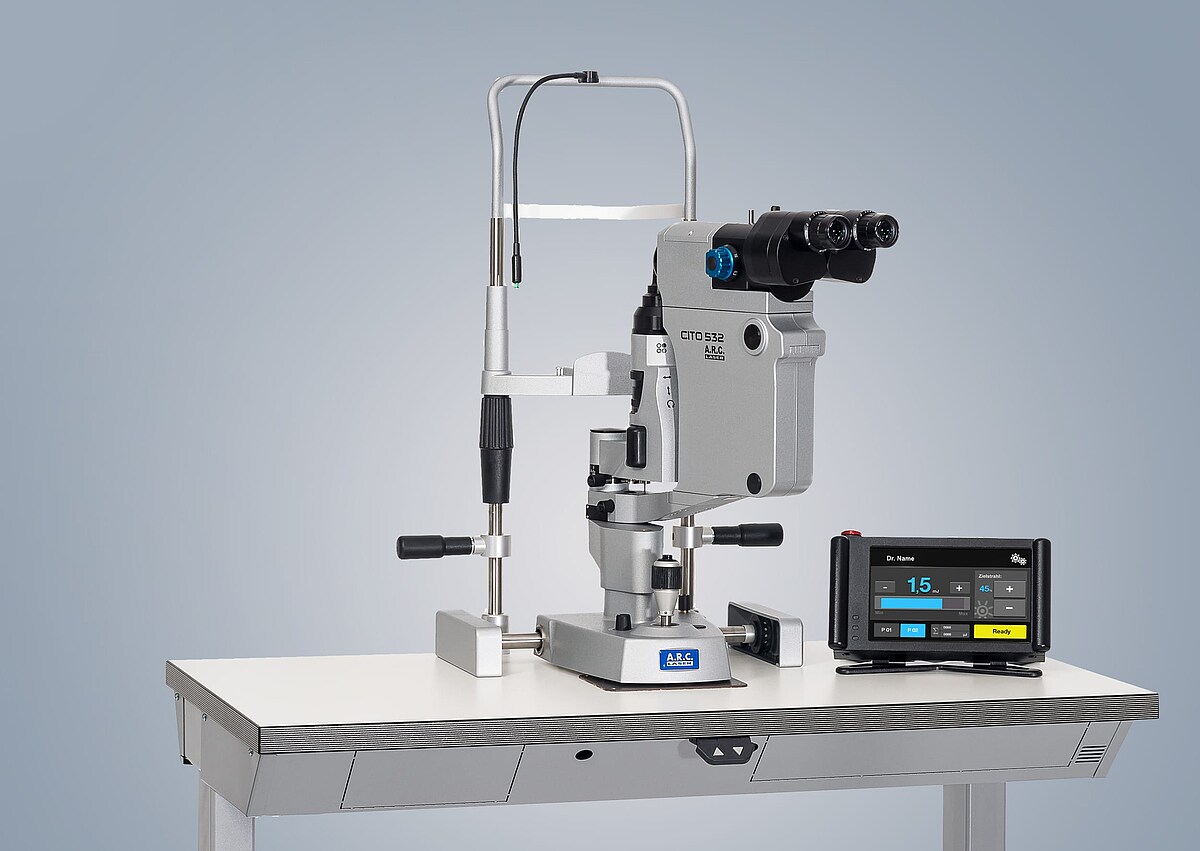

The CITO 532™ is a solid‑state, frequency‑doubled Nd:YAG laser that delivers the original 532 nm wavelength for selective laser trabeculoplasty (SLT). Designed and built in Germany, it couples directly to a slit lamp and uses μ‑Chip technology to keep output energy stable for a theoretically unlimited service life. Quick‑Repetition pulses, a large touchscreen, and coaxial optics make every treatment precise, fast, and comfortable for both patient and surgeon.

Key Features

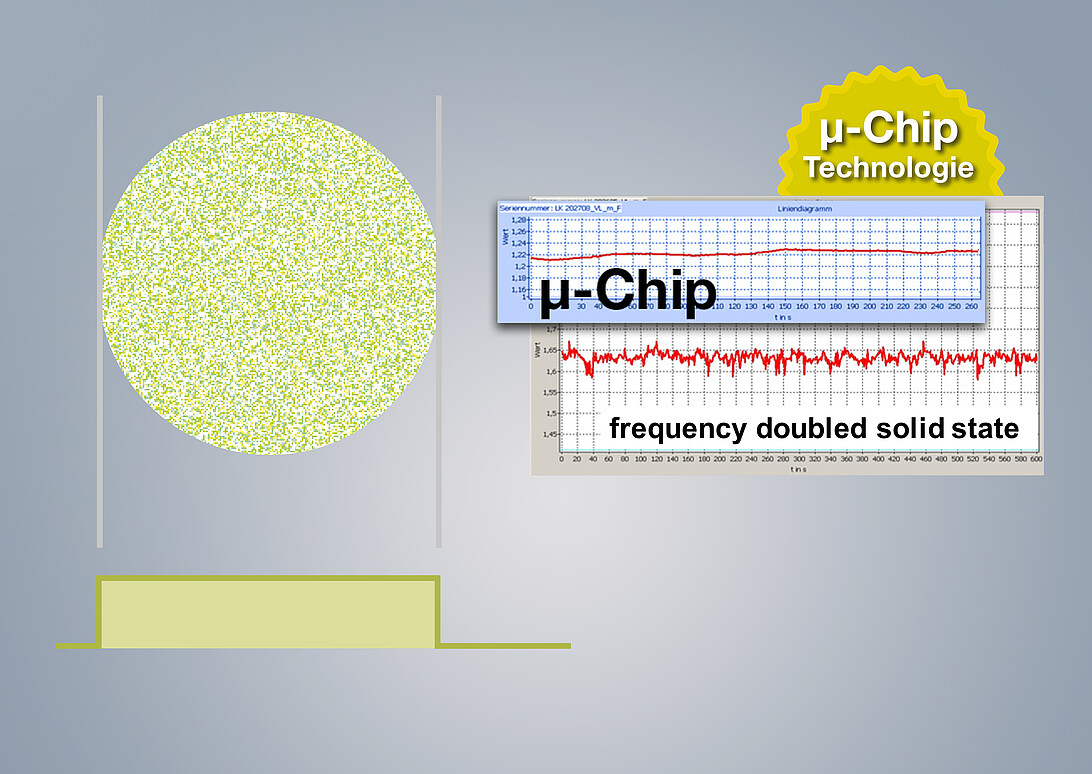

  • Ultra‑Fast, Stable Energy Delivery: Quick‑Repetition mode fires pulses at > 10 Hz, cutting overall chair time. μ‑Chip control holds power deviation to < 2 %, ensuring consistent results from start to finish.
  • Patient Comfort & Safety: 532 nm wavelength is associated with less pain and stress than conventional flash‑lamp SLT systems. Clear‑View filter maintains natural colour fidelity while protecting the physician’s eyes.
  • Workflow‑Driven Design: Large, bright touchscreen keeps all parameters visible at a glance. Coaxial alignment of slit illumination, aiming beam, and treatment beam simplifies targeting of the trabecular meshwork.
  • Solid‑State Reliability: Diode‑pumped architecture eliminates flash lamps, high‑voltage capacitors, and heat loss to the housing. Engineered for a theoretically unlimited lifetime, with no harmful UV light in the cavity.
Technical Specifications
Laser type Q‑switched, frequency‑doubled Nd:YAG
Wavelength 532 nm
Energy range 0.2 – 2.0 mJ (quasi‑continuous)
Spot size 400 µm (focused)
Pulse width 3 ns
Repetition rate > 10 Hz
Aiming beam 635 nm, < 1 mW, adjustable
Doctor filter Permanent, colour‑neutral
Display Integrated touchscreen
Power supply 100 – 240 V AC, 50/60 Hz, 600 W
Weight 53 kg (with slit lamp)
Laser class Class 3B (532 nm, E = 2.5 mJ); aiming beam Class 3R (635 nm, P < 5 mW)
Footprint Approx. 0.5 m² stand area
Exit angle 3.2°; beam coupled through column illumination
Why Choose the CITO 532™?
  • : Fastest SLT available (> 10 Hz) for shorter procedures and improved clinic throughput.
  • : Stable, repeatable energy with < 2 % deviation for predictable outcomes every time.
  • : Patient‑friendly 532 nm wavelength reduces discomfort and anxiety during treatment.
  • : Long‑life solid‑state design means no flash‑lamp replacements or performance drift.
  • : Intuitive touchscreen and coaxial optics streamline setup, aiming, and documentation.

CITO 532™ brings together speed, precision, and durability to give glaucoma specialists a next generation platform for gentle, effective SLT—helping lower intraocular pressure and protect vision with confidence.
