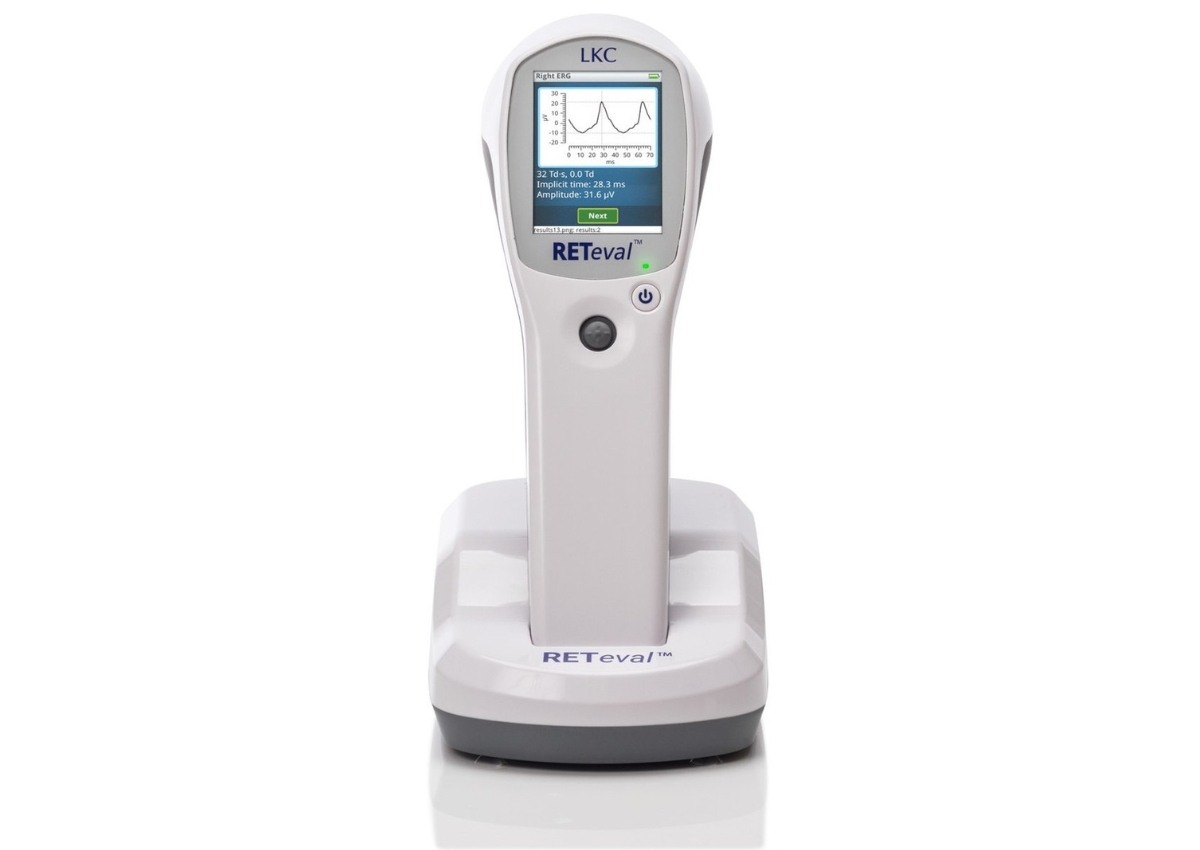

LKC RETeval Hand-held ERG & VP System

LKC RETeval Hand-held ERG & VP System

Point‑of‑Care Electrodiagnostics for Every Age and Setting

The RETeval® is the world’s first completely portable device that performs full‑field electroretinography (ERG) and flash visual evoked potentials (VEP) without the need for corneal electrodes, mydriatic drops, or a dark room. Using patented sensor‑strip skin electrodes and built‑in constant‑luminance Ganzfeld stimulation, the unit delivers ISCEV‑compliant results in minutes—anywhere from primary‑care clinics to operating theatres.

Key Features
  • All‑in‑One ERG & VEP: Performs photopic flicker, scotopic and photopic flash ERG, diabetic‑retinopathy (DR) function testing, and flash VEP through the same hand‑held console.
  • Non‑Mydriatic, Skin‑Electrode Convenience: Disposable sensor strips adhere beneath the lower lid—no topical anaesthetic or contact electrodes required and no corneal abrasion risk.
  • Automatic Pupil‑Scaled Stimulus: Infra‑red pupillography measures pupil size in real time and adjusts flash strength so retinal illuminance remains constant, even without dilation.
  • Colour‑Coded, Normative Reports: Built‑in age‑matched database instantly flags amplitude or implicit‑time deviations, simplifying interpretation for non‑specialists.
  • Truly Portable & Battery Powered: Weighs 8.5 oz (240 g) and runs all day on its rechargeable battery; a pocket‑sized docking station recharges and stores the unit when not in use.
  • Rapid, Reimbursable Workflow: Typical bilateral DR‑ERG takes under three minutes and qualifies for CPT 92275 (ERG) or 95930 (VEP).
  • Data Security & Connectivity: Store thousands of tests on the device, export PDFs via USB, or send results directly to your EMR with the companion PC software.
Technical Specifications
Stimulation Integrated flash ganzfeld (≤ 8 Td·s retinal illuminance)
Protocols ISCEV photopic 30 Hz flicker, dark‑adapted flash, light‑adapted flash, DR screening, flash VEP, custom
Electrodes Disposable LKC Sensor Strip™ skin electrodes (impedance‑monitored)
Pupil tracking 30 Hz IR camera, 2.0–10 mm detection
Device weight 8.5 oz / 240 g
Dimensions 7.2 in L × 2.7 in W × 2.5 in H (183 × 69 × 63 mm)
Power & battery Rechargeable Li‑ion; > 225 tests per charge; charging dock included
Data storage ≥ 4 000 bilateral tests in on‑board memory
Outputs PDF, CSV, or raw data via USB‑C; PC viewer software included
Compliance ISCEV standard for full‑field ERG & VEP; CE‑marked; FDA 510(k) cleared
Why Choose RETeval®?
  • : Clinic‑ready in seconds—no dilation, no dark room, no extra staff.
  • : Comfortable for all patients, from infants to geriatric and special‑needs populations.
  • : Objective functional data complements OCT and fundus imaging for glaucoma, retina, neuro‑ophthalmology, and diabetic‑retinopathy management.
  • : Hand‑held portability enables use in satellite offices, bedside consults, mission trips, and operating‑room anaesthesia monitoring.
  • : Fast ROI through recognised CPT codes and minimal consumable cost.

RETeval® turns complex electrodiagnostics into a quick, patient‑friendly point‑of‑care test—bringing functional vision assessment to every practice environment.
