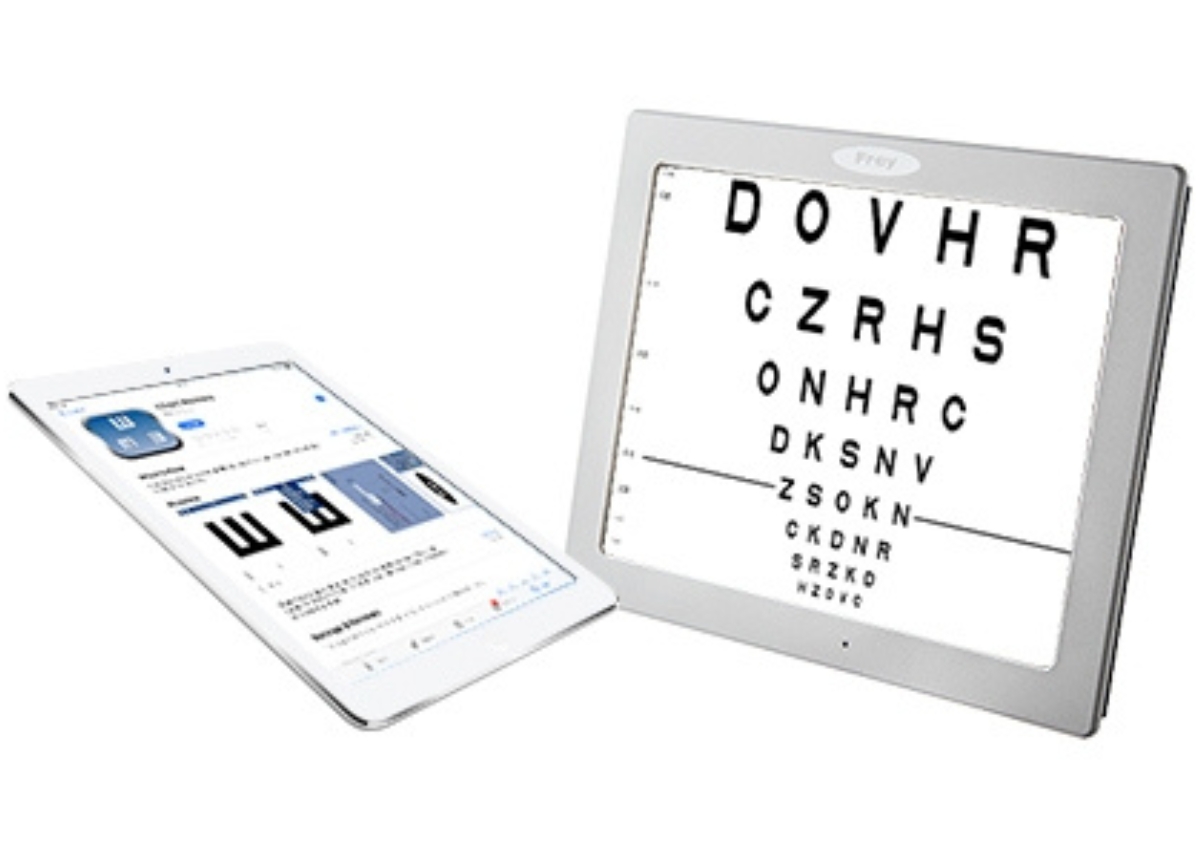

CP‑400P Digital Chart Panel

CP-400P Digital Chart Panel

All‑In‑One Visual‑Acuity, Stereo & Contrast Testing on a 23‑inch LED Display

The CP‑400P brings more than 500 internationally recognised tests to a single, slim‑line LCD panel. Fully self‑contained, it replaces chart projectors and wall charts with razor‑sharp optotypes, colour‑vision plates, stereo and contrast tests, while its built‑in computer stores patient‑education videos and generates PDF reports for instant transfer to your EMR or printer. One tap on the wireless remote (or the optional iPad® app) launches a complete, custom test sequence—making workflow faster, cleaner and more engaging for every patient.

Key Features
  • Comprehensive Test Library: Letter, number, symbol, E‑Snellen, Landolt C & ETDRS charts in Snellen, LogMAR, DIN and contrast modes. 3 D stereo suite with polarised filters (Worth, Phoria, Circles, Minute Stereo, etc.). Colour‑vision (Ishihara), low‑vision AMD optotypes, 100 Hue and D15 desaturated panels. Contrast‑sensitivity options: low‑contrast optotypes or sinusoidal bar gratings (spatial frequency).
  • Fast, Flexible Workflow: Auto‑randomisation and 0.5 s chart‑change keep patients guessing and reduce memorisation. Three user‑programmable sequences (15 steps each) start with a single button press. Reports generated on‑board; save as PDF to USB stick or share wirelessly over WLAN.
  • Connectivity & Integration: Wireless link to many automated phoropters expands existing refraction systems. Optional Wi‑Fi module for network access, iPad remote control and multimedia transfers. VESA 200 × 100 mm mount pattern for wall, stand or unit integration.
  • Patient‑Education Module: Store images and videos directly on the panel—ideal for explaining pathology, surgery or contact‑lens care at the slit lamp.
Technical Specifications
Display 23″ LED, 583 × 359 × 30 mm
Weight 3.9 kg
Refraction distance 2.9 – 6.1 m
Background luminance 200 cd/m²
Picture‑change time 0.5 s
Power 100 – 240 V AC (12 V / 5 A adapter) · ≤ 60 W
Auto‑off timer 5 / 10 / 15 min
User programs 3 programs, 15 steps each
Mounting VESA 200 × 100 mm
Why Choose the CP‑400P?
  • : Over 500 tests—visual acuity, stereo, colour, contrast, low‑vision and paediatric charts in one device.
  • : Instant sequencing & reporting speeds refractions and documents results at the touch of a button.
  • : Wireless freedom—operate from the remote, iPad app or link to automated phoropters and your EMR.
  • : Slim, modern design enhances any exam lane without a separate PC or projector.
  • : Future‑proof content—upload new optotypes, videos or educational material whenever practice needs evolve.

The CP‑400P turns a standard vision check into a streamlined, multimedia experience—helping clinicians work smarter and patients see better, every day.
