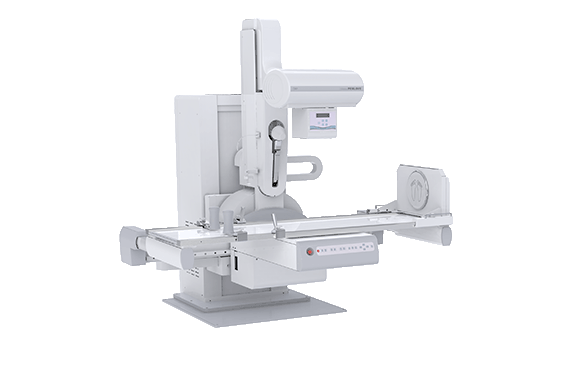

PLD8700 Premium All-in-One Mixed DR & Fluoro System

43 × 43 cm FPD, dual-energy imaging, digital angiography presets, 265 kg tabletop load

The PLD8700 combines high-speed digital radiography with advanced fluoroscopy in a compact, all-in-one design. Engineered for mixed DR and fluoro rooms, it delivers rapid detector response and 265 kg table capacity for diverse clinical applications in GI labs.

Key Features

Large format detector: 43 × 43 cm FPD provides expansive field of view for comprehensive imaging
Digital angiography capability: advanced vascular imaging with road-mapping and contrast enhancement presets
High table capacity: 265 kg load capacity accommodates bariatric and complex positioning requirements
Dual-energy imaging: bone/soft tissue separation for enhanced diagnostic clarity

Technical Specifications

Detector	43 × 43 cm flat-panel with dual-energy capability
Table capacity	265 kg maximum patient load
Clinical focus	Mixed DR + fluoro rooms, GI labs
Imaging modes	DR, fluoroscopy, digital angiography, dual-energy

The PLD8700 delivers premium performance for facilities requiring fast, high-quality imaging across multiple modalities in mixed DR and fluoroscopy environments.

DRF Performance Tiers

	PLD9600 Series	PLD8700	PLD8000 B/C	PLD6000
Performance Tier	Flagship	Premium All-in-One	High-Efficiency	Value / Compact
Models	PLD9600 Series (PLD9600 D / PLD9600 A)	PLD8700	PLD8000 B / C	PLD6000
Typical Clinical Focus	High-volume radiology, interventional suites, bariatrics, paediatrics	Mixed DR + fluoro rooms, GI labs	Routine GI, ERCP, orthopaedics	Community hospitals, outreach centres, occupational health
Stand-out Capabilities	30 fps dynamic FPD, fully motorised table (±90 ° tilt, 1.8 m SID), auto-stitching, AI image enhancement, contrast & spot-film package	43 × 43 cm FPD, dual-energy imaging, digital angiography presets, 265 kg tabletop load	Fast exam wizard, 360 ° rotating foot pedal, on-table contrast studies, self-developed HF generator (model C)	Slim chassis (fits 10 m² rooms), 200 kg load, manual/auto modes, SID stretch to 1.8 m for chest screening

Choosing the Right DRF System

	PLD9600 Series	PLD8700	PLD8000 B/C	PLD6000
If you need...	Maximum automation & AI image clarity	Fast turnover with advanced GI & vascular options	High throughput at mid-range cost	Reliable DRF in a small budget or room
Choose	PLD9600 D / Series	PLD8700	PLD8000 B / C	PLD6000
Because	Fully motorised, fastest workflow, advanced processing	Rapid detector, digital angiography, 265 kg capacity	Intelligent exam wizard, robust hardware, low dose	Slim profile, essential automation, 200 kg table load
