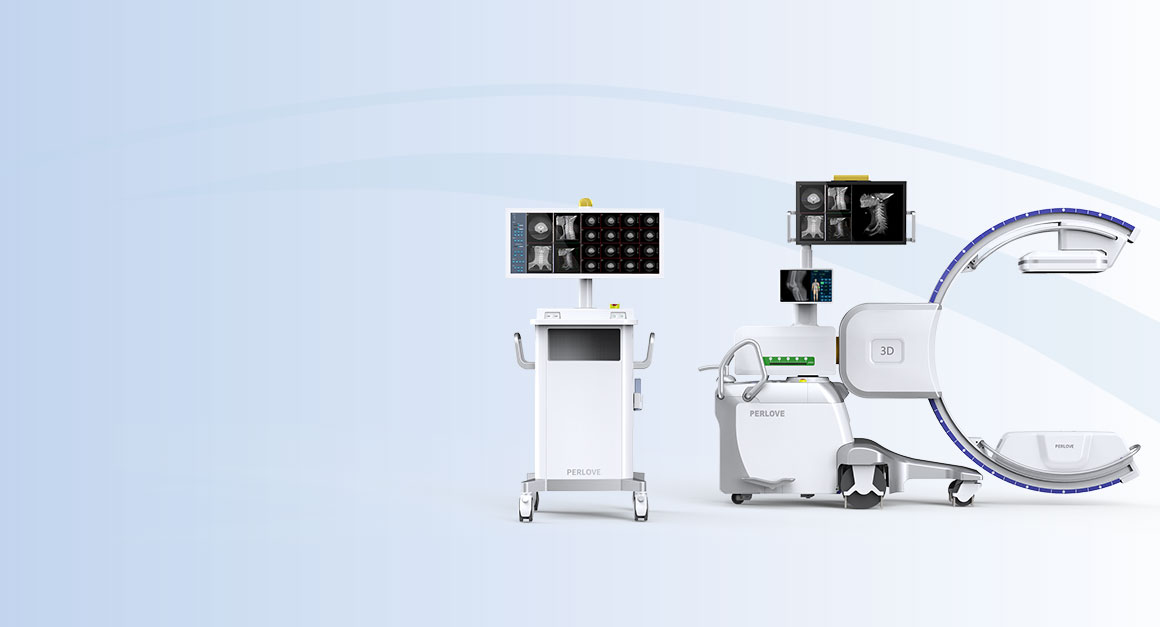

PLX C7500 Series 3-D Digital Intra-operative C-Arm

Flat-panel CBCT in a C-arm footprint for 3-D imaging solutions

The flagship PLX C7500 Series delivers intra-operative 3-D CT and 2-D fluoro in a single system. With 360° isocentric scan capability and sub-0.2 mm isotropic voxels, it enables real-time 3-D reconstructions for spine, trauma, and complex orthopaedic procedures.

Key Highlights

360° isocentric scan: generates axial, sagittal, coronal and full 3-D reconstructions in < 60 s.
AI metal-artefact reduction: sub-0.2 mm isotropic voxels let surgeons verify screw placement before closing.
Dual-mode imaging: switches instantly between 20 fps pulsed fluoro and CBCT without moving the patient.
Optional laser navigation: sterile joystick improves workflow for MIS spine and trauma plating.

Technical Specifications

Detector	30 x 30 cm flat-panel with 190 μm pixel pitch
Generator	20 kW rotating-anode with automatic exposure control
3-D scan time	< 60 seconds for full CBCT acquisition
Voxel size	Sub-0.2 mm isotropic resolution
C-arm travel	360° continuous rotation with ±25° orbital tilt

When to choose PLX C7500

: Complex spine procedures requiring real-time 3-D verification, trauma cases needing immediate CBCT assessment, and orthopaedic navigation where sub-millimeter accuracy is critical.

The PLX C7500 Series represents the pinnacle of surgical imaging, combining the mobility of a C-arm with the diagnostic power of CT for uncompromising intra-operative guidance.

Perlove Surgical C-arm Portfolio Comparison

	PLX C7500 Series	PLX 118F-Plus	PLX 119C	PLX 7000B
Detector/FOV	30 x 30 cm flat panel • 190 μm voxel 3-D scan	30 x 30 cm dynamic FPD (25 fps)	30 x 30 cm FPD	9"/12" tri-field image intensifier
Generator	20 kW rotating-anode	5-15 kW HF	25 kW HF	3.5-15 kW HF
Best-fit procedures	Spine, trauma, orthopaedic navigation, complex reconstructions	General OR, pain, ERCP, vascular road-map, bariatrics	Vascular, urology, hybrid OR, bariatric trauma	Routine ortho, pain blocks, GI, emergency rooms

Selecting Your Perlove C-Arm

	PLX C7500 Series	PLX 118F-Plus	PLX 119C	PLX 7000B
Clinical focus	Complex spine / 3-D navigation	High-volume pain & ERCP	Mixed trauma + bariatric	Routine ortho / day surgery
Recommended line	PLX C7600 / C7500A	PLX 118F-Plus	PLX 119C	PLX 7000B
Rationale	Real-time 3-D, 200 μm voxels, auto-registration	All-in-one arm, fast standby, 4 K display	25 kW power, large FPD, DSA ready	Cost-effective triple-field I.I. with HF generator
