Model Specifications

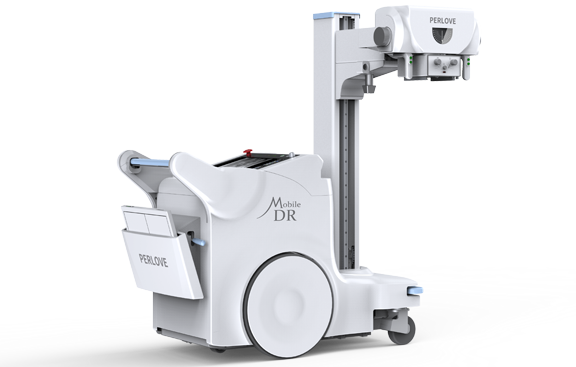

• PLX 5500: 55 kW - FPD flagship bedside unit with 150 μm CAI detector, motor-assist drive & auto-stitching
• PLX 5300 A: 50 kW - FPD high-power split generator, ± 5 s warm-up, 360° tube rotation
• PLX 5200 A: 50 kW / 25 kW options - ultrasonic distance lock, motorised column, 8 h battery
• PLX 5100: 5 kW - FPD ultra-light chassis (< 300 kg), manual push

Mobile Highlights

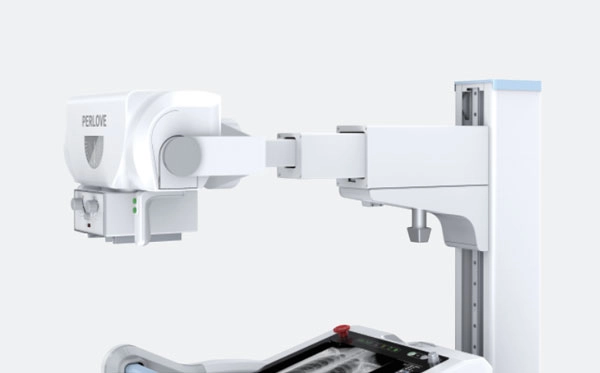

• Motorised column & power-assist drive: on high-power models
• Wireless FPDs: (14 × 17" or 17 × 17") with 3 s image preview
• Auto-dose mode and Cu filtration: keep bedside exposure low

Configuration Options

• Floor/Table DR: Motorised floor tube + elevating, floating E-way table for high-volume general radiography
• Manual or servo floor rails: 500 μm detector option on PLD 5500 for cost-sensitive public hospitals
• Vehicle-mounted DR suite: mobile clinics, military deployment

The PLX 5500 Series provides scalable digital radiography solutions from basic manual systems to fully motorized high-volume configurations.
