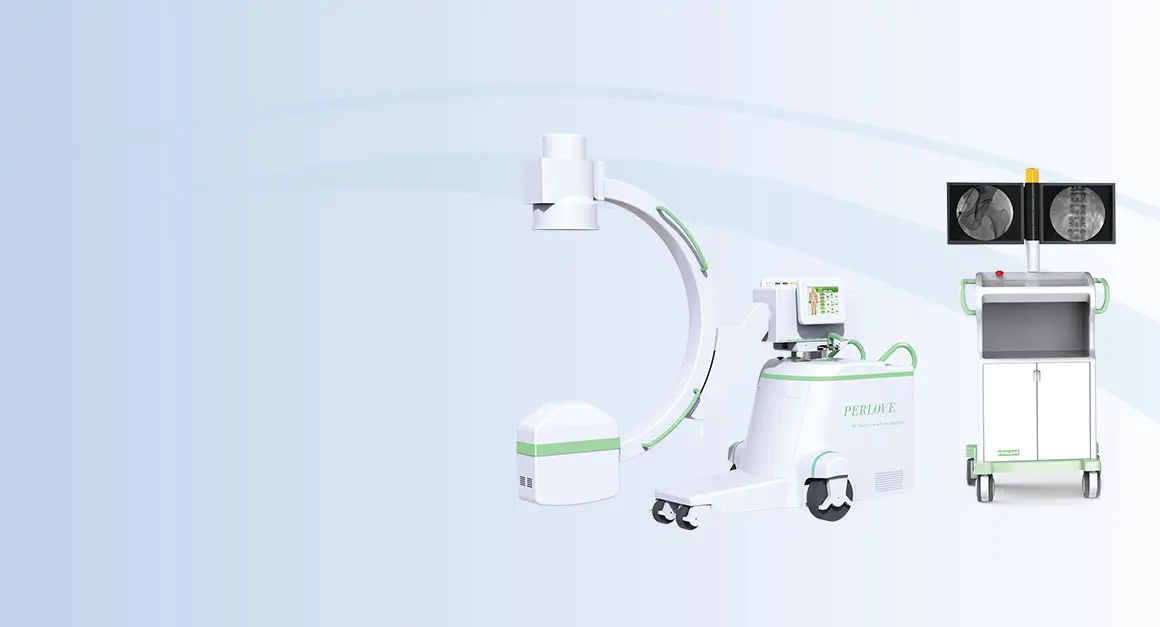

PLX 7000B Economy High-Frequency I.I. C-Arms

PLX 7000B

Affordable entry with pro-grade imaging capabilities

Cost-effective triple-field I.I. with HF generator for routine surgical imaging. The PLX 7000B provides professional-grade imaging capabilities at an accessible price point for budget-conscious facilities.

Key Features
  • 9" or 12" triple-field I.I.: 15 kW rotating-anode generator and kVmA auto-track for best brightness.
  • Graphic dual-touch screens: electric iris collimator and four-axis brakes improve daily throughput.
  • Ideal for fracture reduction: pacemaker insertion, cholangiography and outpatient pain clinics.
Technical Specifications
Image intensifier 9" or 12" triple-field with automatic brightness control
Generator 3.5-15 kW high-frequency with auto-tracking
Display Dual touch screens with graphic user interface
Collimation Electric iris collimator with four-axis brake system
Best suited for
  • : Routine orthopaedic procedures, day surgery centers, pain management clinics, and facilities requiring reliable, cost-effective imaging without compromising essential functionality.

The PLX 7000B delivers dependable performance and essential features for routine surgical imaging at an exceptional value.

Perlove Surgical C-arm Portfolio Comparison

PLX C7500 Series PLX 118F-Plus PLX 119C PLX 7000B
Detector/FOV 30 x 30 cm flat panel • 190 μm voxel 3-D scan 30 x 30 cm dynamic FPD (25 fps) 30 x 30 cm FPD 9"/12" tri-field image intensifier
Generator 20 kW rotating-anode 5-15 kW HF 25 kW HF 3.5-15 kW HF
Best-fit procedures Spine, trauma, orthopaedic navigation, complex reconstructions General OR, pain, ERCP, vascular road-map, bariatrics Vascular, urology, hybrid OR, bariatric trauma Routine ortho, pain blocks, GI, emergency rooms

Selecting Your Perlove C-Arm

PLX C7500 Series PLX 118F-Plus PLX 119C PLX 7000B
Clinical focus Complex spine / 3-D navigation High-volume pain & ERCP Mixed trauma + bariatric Routine ortho / day surgery
Recommended line PLX C7600 / C7500A PLX 118F-Plus PLX 119C PLX 7000B
Rationale Real-time 3-D, 200 μm voxels, auto-registration All-in-one arm, fast standby, 4 K display 25 kW power, large FPD, DSA ready Cost-effective triple-field I.I. with HF generator
