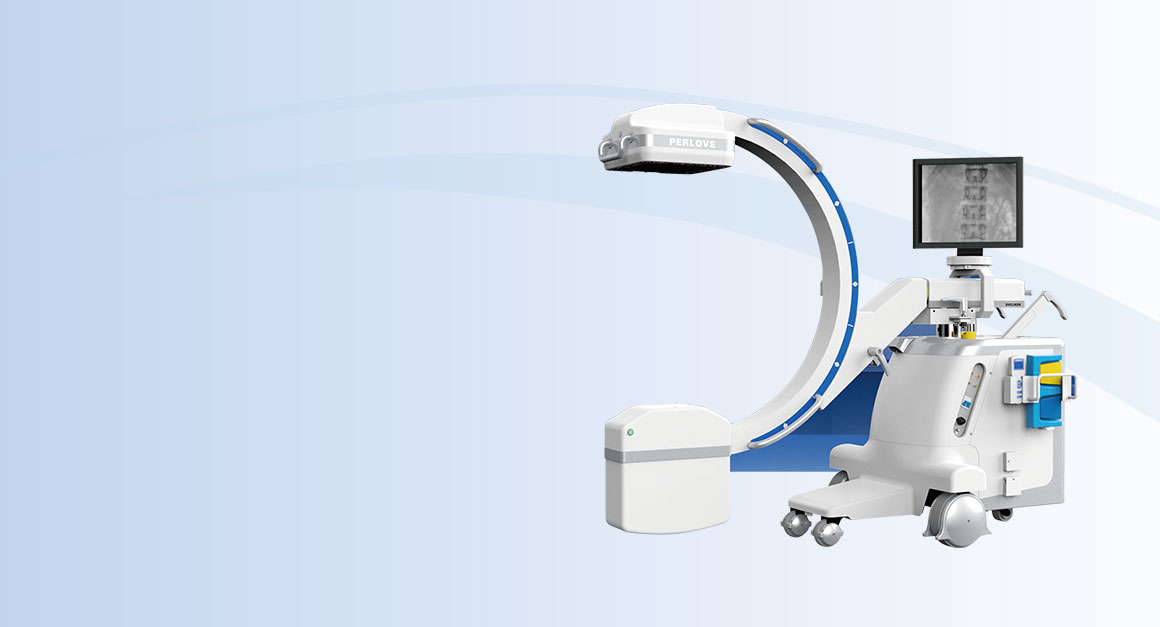

PLX 118F-Plus Premium Flat-Panel C-Arm

All-in-One Flat-Panel C-Arms with integrated generator and workstation

Compact 'workstation-in-arm' design saves floorspace and simplifies battery-powered operation. The integrated generator and workstation deliver professional imaging in a streamlined package ideal for diverse surgical applications.

Key Highlights

Integrated generator + workstation: saves floorspace; stringy battery lets the unit roll between theatres while powered.
4 K 32" swing-arm monitor: 12" touch console put image and dose controls where the surgeon needs them.
Indifferent-equilibrium mechanics: hover safely at any angle; 100 cm free space eases bariatric positioning.
High-DQE detector: lowers mA, cutting skin dose during lengthy ortho or pain procedures.

Advanced Features

Auto-dose algorithms: pulsed fluoro, virtual collimation, copper filters & ABC keep dose ALARA.
One cable, one cart: articulated dual-monitor workstation (27-32") with DICOM store, worklist, print and dose SR.
Full manoeuvre envelope: 120 cm free space, ±210° orbital rotation, 25 cm transverse slide; 360° table-free "zero-shot" imaging.
Easy sterile control: dual foot switches, Bluetooth hand controller or on-screen gestures.
Service & remote diagnostics: built-in log upload and modular design shorten downtime.

Why choose PLX 118F-Plus

: Multi-purpose surgical suites requiring excellent image quality, dose efficiency, and flexible positioning for general OR, pain management, ERCP, vascular procedures, and bariatric surgery.

The PLX 118F-Plus delivers flagship performance in a compact, all-in-one design that maximizes versatility while minimizing the OR footprint.

Perlove Surgical C-arm Portfolio Comparison

	PLX C7500 Series	PLX 118F-Plus	PLX 119C	PLX 7000B
Detector/FOV	30 x 30 cm flat panel • 190 μm voxel 3-D scan	30 x 30 cm dynamic FPD (25 fps)	30 x 30 cm FPD	9"/12" tri-field image intensifier
Generator	20 kW rotating-anode	5-15 kW HF	25 kW HF	3.5-15 kW HF
Best-fit procedures	Spine, trauma, orthopaedic navigation, complex reconstructions	General OR, pain, ERCP, vascular road-map, bariatrics	Vascular, urology, hybrid OR, bariatric trauma	Routine ortho, pain blocks, GI, emergency rooms

Selecting Your Perlove C-Arm

	PLX C7500 Series	PLX 118F-Plus	PLX 119C	PLX 7000B
Clinical focus	Complex spine / 3-D navigation	High-volume pain & ERCP	Mixed trauma + bariatric	Routine ortho / day surgery
Recommended line	PLX C7600 / C7500A	PLX 118F-Plus	PLX 119C	PLX 7000B
Rationale	Real-time 3-D, 200 μm voxels, auto-registration	All-in-one arm, fast standby, 4 K display	25 kW power, large FPD, DSA ready	Cost-effective triple-field I.I. with HF generator
