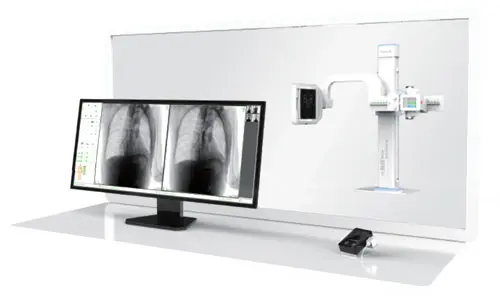

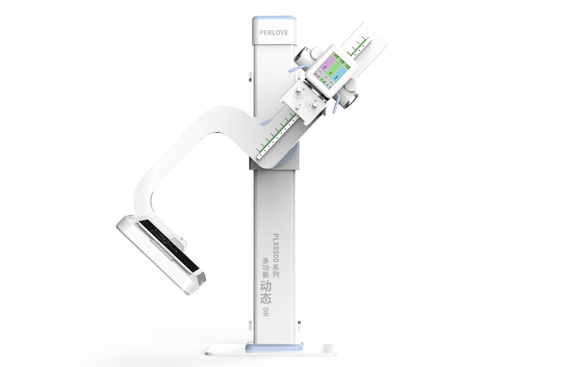

PLX 8500 / 8200A Dynamic U-Arm DR Systems

Dynamic U-Arm DR Systems for Mixed Radiography and Fluoroscopy

The PLX 8500 Series combines dynamic flat-panel technology with versatile U-arm positioning for comprehensive radiography and real-time fluoroscopy in a single room solution.

Key Highlights

43 × 43 cm flat panel: 30 fps fluoro, automated 120° arm rotation for seamless AP, lateral, and oblique positioning
500 μm ultra-HD detector: 9 kW HF generator for exceptional image clarity
90° lateral swing: chair-seated chest exams without patient repositioning
9-Mpixel snapshot: 500 μm micro-DR option for paediatric bone and tissue presets

U-arm Advantages

Single column saves floor space: ideal for mixed trauma & out-patient work
Auto-position buttons: for PA chest, oblique lumbar, supine abdomen, etc.
Optional real-time fluoro: (PLX 8500 / 8200) for arthrograms, GI studies

Technical Specifications

Detector	43 × 43 cm FPD with AED—no generator handshake needed
Generator	32-65 kW; rotating-anode tubes standard
Auto-stitch and dual-energy	Optional capability for enhanced imaging

The PLX 8500 Series delivers maximum versatility for facilities requiring both high-quality radiography and dynamic fluoroscopy capabilities in a space-efficient U-arm configuration.

Choosing Your Perlove Radiography Solution

	PLX 8500 / 8200A	PLX 5500 / 5200A / 5100	PLD 3800 / 7500	PLX 101 Series
Primary Need	Mixed DR + basic fluoroscopy in one room	Budget-friendly fixed room upgrade	Mobile clinic / field deployment	Bedside imaging, ICU rounds
Recommended Range	PLX 8500 dynamic U-arm / PLX 8200A	PLD 5500 floor DR	PLD 3800 vehicle-mounted	PLX 5500 / 5200 A mobile DR
